63 31 182 Replacing LED for front inside door opener

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front door trim , see 51 41 000 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT DOOR TRIM PANEL .

NOTE: Operation is shown by way of example on the E70. There may be differences in detail in the case of other vehicle models.

Remove sheathing of wiring harness (1) in area (A) and remove wiring harness holder (2).

Cut through wiring harness (1) in area (A) and remove LED for front inside door opener (3).

Installation:

Adapt length of wiring harness of new LED for front inside door opener.

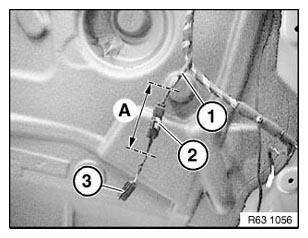

Fig 1: Identifying Front Inside Door Opener And Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

Connect wiring harness of new LED for front inside door opener using butt connectors to wiring harness (1), see 61 13... BUTT CONNECTOR FOR REPAIRING A PLUG CONNECTION .

Wrap wiring harness (1) in insulating tape.
