63 11 855 Replacing LED fan at right (middle)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove headlight with LED technology .
WARNING:
Danger of injury from cutting tool; wear gloves that provide protection against cutting.

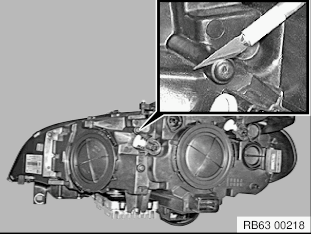

Open repair cap as shown using suitable tool (e. g. cutter knife).
Installation note: Repair opening is closed again using the plug contained in the repair kit.

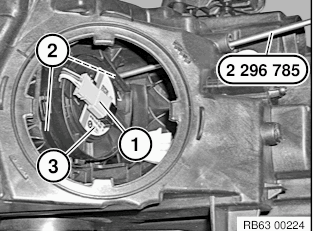

Disconnect plug connection (1). Unfasten screws (2) using tool 2 296 785. Tightening torque 1.5 Nm. Take fan (3) out of headlight.
