63 11 850 Replacing LED fan at right (outside)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT LEFT OR RIGHT WHEEL ARCH COVER (FRONT SECTION)

NOTE: Graphic similar!

Turn protective cap (1) counterclockwise and remove.

IMPORTANT: Risk of damage due to moisture penetration!

Installation note: Check seal. Replace protective cap (1) if necessary. Comply with Instructions for replacing the protective cap . Protective cap (1) must lock correctly! Turn the protective cap (1) clockwise to end stop (A)!

Fig 1: Turning Protective Cap Clockwise To End Stop

Courtesy of BMW OF NORTH AMERICA, INC.

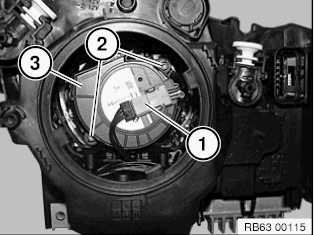

NOTE: Headlight has been removed for purposes of clarity - graphic is similar.

Disconnect plug connection (1). Unfasten screws (2). Tightening torque 1.5 Nm. Take LED fan (3) out of headlight.

Installation note: Make sure LED fan (3) is correctly seated in headlight. Make sure plug connection (1) is correctly seated.

Fig 2: Removing LED Fan

Courtesy of BMW OF NORTH AMERICA, INC.
