63 11 820 Replacing left cornering light LED module

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Read and comply with notes on protection against electrostatic damage (ESD protection). See 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) ).

Necessary preliminary tasks:

Remove left headlight with LED technology .

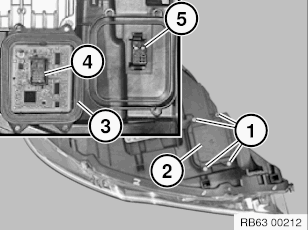

Release screws (1). Tightening torque 1.5 Nm. Remove cornering light LED module (2).

Installation note: Gasket (3) for cornering light LED module (2) must not be damaged and must be installed free from grease. Mount corning light LED module (2) precisely on the headlight. Make sure pin housing (4) is correctly seated in pin housing (5).

Fig 1: Ensure Pin Housing Is Correctly Seated In Pin Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement: Carry out programming/encoding.
