63 25 000 Removing and installing/replacing auxiliary brake light
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection
, see 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE)
).
Necessary preliminary tasks:
- Remove panel for rear window frame (top) , see 51 49 002 REMOVING AND INSTALLING/REPLACING (UPPER) PANEL FOR REAR WINDOW FRAME .

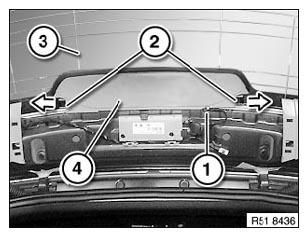

Disconnect plug connection (1).
Unlock slide (2) on both sides and remove supplementary brake light (4) from rear window (3).
Installation:
Make sure supplementary brake light (4) is correctly positioned and engaged on rear window (3).
