52 26 405 Replacing cover for left or right rear seat

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

52 0 050 , see 52 0 050 PLIERS .

Necessary preliminary tasks:

Remove rear seat , see 52 26 000 Removing and installing/replacing left or right rear seat .

Open tension cable (1).

Disconnect retainers in marked area

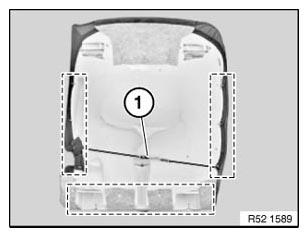

Fig 1: Identifying Tension Cable

G06213234

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect retainers in marked area

Remove all remnants of clips from cover and support.

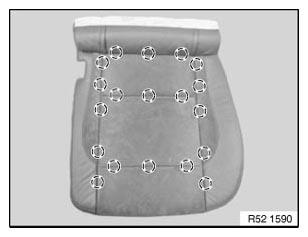

Fig 2: Identifying Retainers Area

G06213235

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert new retainer (2) with special tool 52 0 050 and bend closed.

Padding
Retainer
Trim wire in padding
Trim wire in seat cover
Seat cover

Fig 3: Bending Retainer

G04727328

Courtesy of BMW OF NORTH AMERICA, INC.
