52 26 030 Removing and installing/replacing armrest for rear seat backrest

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Release screw (1).

Tightening torque: 52 26 03AZ , see 52 26 REAR SEATS (THROUGH-LOADING SYSTEM) .

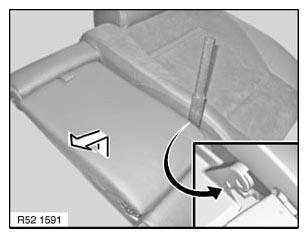

Twist armrest in direction of arrow out of right mount.

Fig 1: Twisting Armrest

Courtesy of BMW OF NORTH AMERICA, INC.

Hold back left armrest trim with a plastic wedge.

Remove armrest.

Fig 2: Removing Armrest

Courtesy of BMW OF NORTH AMERICA, INC.
