52 16 023 Removing and installing/replacing adjusting unit for thigh support on left or right front seat

Move front seat into top position. Unclip cover (1) with special tool 00 9 325 starting at the inside (arrow).

Fig 1: Unclipping Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Fold up and unclip cover (1).

Fig 2: Folding Up And Unclipping Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Move thigh support (1) as far forward as possible.

Fig 3: Identifying Thigh Support

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect. Unfasten screws (2). Remove thigh support upward.

Installation note:  Insert screws (2) with Loctite.

Fig 4: Identifying Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip and remove cover (1) toward the top with special tool 00 9 325. Installation note:  Secure guide pins (2) in seat frame and clip cover (1) into place.

Fig 5: Unclipping Trim

Courtesy of BMW OF NORTH AMERICA, INC.

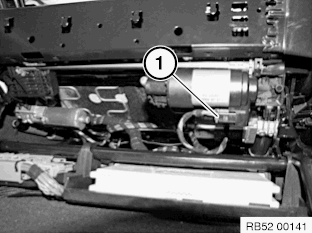

Disconnect plug connection (1).

Fig 6: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

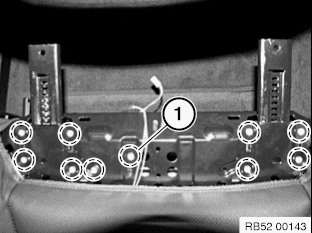

Release screws (1).

Fig 7: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

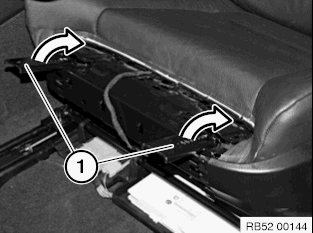

Raise adjusting unit (1) complete with electric motor in direction of arrow and feed out downward.

Fig 8: Raising Adjusting Unit

Courtesy of BMW OF NORTH AMERICA, INC.

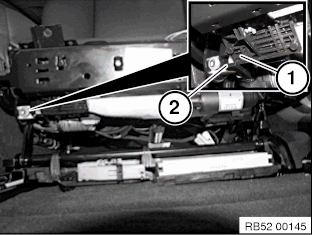

Installation note:  Adjusting unit (1) must lie flush on facing (2).

Fig 9: Ensure Adjusting Unit Is Flush On Facing

Courtesy of BMW OF NORTH AMERICA, INC.

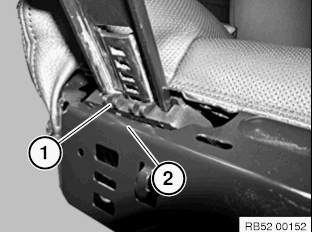

Installation note:  Make sure latch mechanism (1) of adjusting frame is correctly on frame (2) (as illustrated).

Fig 10: Ensure Latch Mechanism (1) Of Adjusting Frame Is Correctly On Frame

Courtesy of BMW OF NORTH AMERICA, INC.
