52 14 040 Removing and installing/replacing outer cover on left or right front seat

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

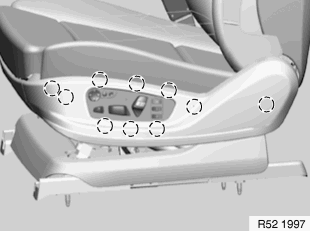

Overview of all attachment points of cover.

Fig 1: Overview Of Attachment Points

G00529681

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip cover (1) from front cover.

Fig 2: Unclip Cover From Front Cover

G00529682

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip cover from lower latch mechanisms. Pull cover toward rear and unclip on sides.

Fig 3: Unclip And Pull Cover Toward Rear

G00529683

Courtesy of BMW OF NORTH AMERICA, INC.

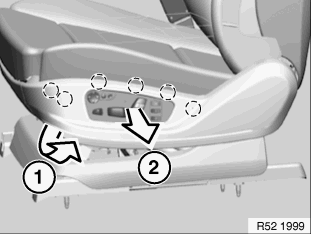

Unclip cover from front latch mechanisms. Unclip cover from upper latch mechanisms by twisting upward.

Fig 4: Unclip Cover From Latch Mechanisms

G00529684

Courtesy of BMW OF NORTH AMERICA, INC.

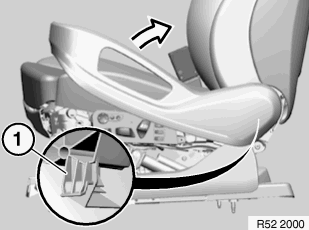

Remove cover in direction of arrow. Installation note: First insert clip (1) in seat mechanism.

Fig 5: Remove Cover In Direction Of Arrow

G00529685

Courtesy of BMW OF NORTH AMERICA, INC.

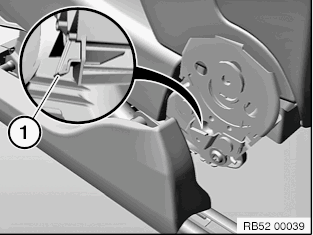

Installation note overview of last operation: Apply felt to inside of clip (1). Clip (1) must be correctly seated in seat mechanism.

Fig 6: Ensure Clip Is Seated In Seat Mechanism

G00529686

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note: Retaining clips for cover must not be damaged. If necessary, replace faulty cover.

Fig 7: Ensure Clips Are Not Damaged

G00529687

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note: Clip for cover must not be damaged. If necessary, replace faulty cover.

Fig 8: Ensure Clip For Cover Is Not Damaged

G00529688

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note: Insert felt-covered clip into rear seat mechanism. Position cover straight and insert in front cover trim. Clip in cover from rear to front. Clip cover in front cover trim.

Fig 9: Installing Cover

G00529689

Courtesy of BMW OF NORTH AMERICA, INC.
