52 17 405 Replacing backrest cover for left or right front seat (comfort)

Special tools required:

• 00 9 317  , see 00 9 317 TRIM PANEL WEDGE .
• 52 0 050  , see 52 0 050 PLIERS .

Necessary preliminary tasks:

• Remove front seat  , see 52 14 000 Removing and installing left or right front seat .
• Remove both rear panels  on front seat backrest, see 52 14 198 Removing and installing or replacing rear panel on left or right front seat backrest .
• Remove inner cover  on front seat, see 52 14 041 Removing and installing inner cover on left or right front seat .

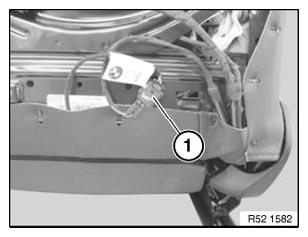

Unfasten plug connection (1) and disconnect.

Fig 1: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage clamping bands (1).

Release clips (2).

Installation:

Bend new retainers closed with pliers 52 0 050  .

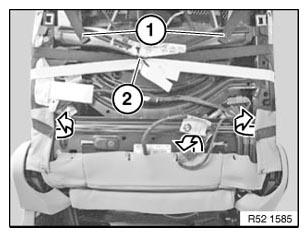

Detach backrest cover at bottom from backrest frame.

Fig 2: Detaching Backrest Cover At Bottom From Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.

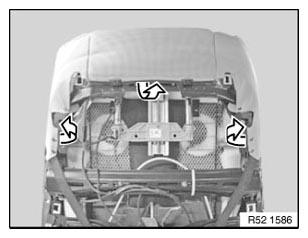

Detach backrest cover at top from backrest frame.

Fig 3: Detaching Backrest Cover At Top From Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.

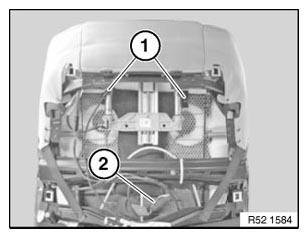

For A/C optional extra only:

Loosen retainers (1).

Installation:

Bend new retainers closed with pliers 52 0 050  .

Unlock and disconnect plug connection (2).

Fig 4: Identifying Plug Connections And Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Remove backrest cover (2) complete with padding towards front.

Installation:

Adjusting unit (1) must be secured on left and right in opening of padding.

Fig 5: Identifying Backrest Cover And Adjusting Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Detach all retainers in areas (1).

Fig 6: Identifying Retainers Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Release all retainers.

Installation:

Bend new retainers closed with pliers 52 0 050  .

Remove backrest cover (1) from padding.

Remove all remnants of clips from backrest cover (1) and padding.

Fig 7: Removing Backrest Cover From Padding

Courtesy of BMW OF NORTH AMERICA, INC.

Pull trim threads (1) out of backrest cover.

Installation:

Push trim threads (1) into new backrest cover.

If necessary, cut into new component.

Fig 8: Pulling Trim Threads Out Of Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out locking strip of head restraint guide with plastic wedge 00 9 317  .

Installation:

Mount straight front face of head restraint guide towards front.

Fig 9: Levering Out Locking Strip Of Head Restraint Guide Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.
