52 17 023 Removing and installing/replacing adjusting unit for thigh support on left or right front seat

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Move front seat into top position. Unclip cover (1) with special tool 00 9 325 starting at the inside (arrow).

Fig 1: Unclipping Cover
G00528167Courtesy of BMW OF NORTH AMERICA, INC.

Fold up and unclip cover (1).

Fig 2: Folding Up And Unclipping Cover
G00528168Courtesy of BMW OF NORTH AMERICA, INC.

Move thigh support (1) as far forward as possible.

Fig 3: Identifying Thigh Support
G00528169Courtesy of BMW OF NORTH AMERICA, INC.

Production date up to 04/2010:  Release screws (1). Disconnect plug connections (2). Remove thigh support (3) towards top.

Fig 4: Identifying Plug Connections, Thigh Support And Screws
G04768245Courtesy of BMW OF NORTH AMERICA, INC.

From production date 04/2010:  Unfasten plug connection (1) and disconnect. Unfasten screws (2). Remove thigh support upward.

Installation note:  Insert screws (2) with Loctite.

Fig 5: Identifying Plug Connection And Screws
G04742803Courtesy of BMW OF NORTH AMERICA, INC.

Unclip and remove cover (1) toward the top with special tool 00 9 325.

Installation note: Secure guide pins (2) in seat frame and clip cover (1) into place.

Fig 6: Unclipping Trim
G04792029Courtesy of BMW OF NORTH AMERICA, INC.

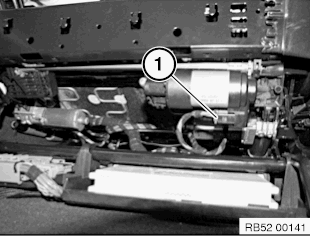

Disconnect plug connection (1).

Fig 7: Disconnecting Plug Connection
G00529701Courtesy of BMW OF NORTH AMERICA, INC.

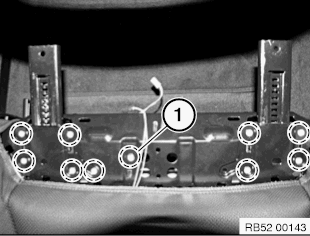

Release screws (1).

Fig 8: Releasing Screws
G00529702Courtesy of BMW OF NORTH AMERICA, INC.

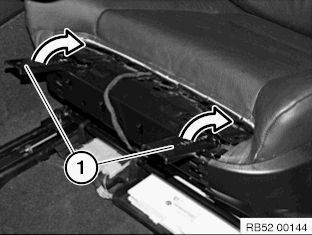

Raise adjusting unit (1) complete with electric motor in direction of arrow and feed out downward.

Fig 9: Raise Adjusting Unit With Electric Motor
G00529703Courtesy of BMW OF NORTH AMERICA, INC.

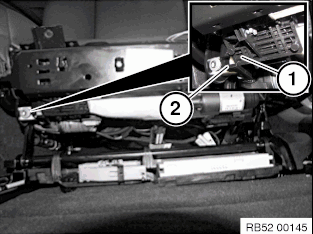

Installation note:  Adjusting unit (1) must lie flush on facing (2).

Fig 10: Adjusting Unit Must Lie Flush On Facing
G00529704Courtesy of BMW OF NORTH AMERICA, INC.

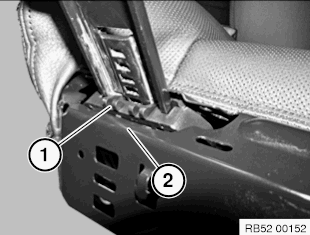

Installation note:  Make sure latch mechanism (1) of adjusting frame is correctly on frame (2) (as illustrated).

Fig 11: Ensure Latch Mechanism Is Correctly On Frame
G00529705Courtesy of BMW OF NORTH AMERICA, INC.
