51 13 305 Removing and installing/replacing left or right rail

Special tools required:

• 00 9 340  , see 00 9 340 DISASSEMBLY AID (2 PIECES) .

Installation:

• Microencapsulated screws (Loctite) must be replaced and may not be reused
• Screw connection must be completed within 20 minutes (start of curing)
• Microencapsulated screws must not be retightened
• Clean thread of nut beforehand in event of repeated use

Front cover cap:

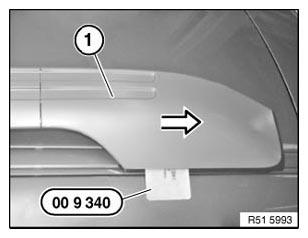

Slide special tool 00 9 340  centrally under front cover cap (1) and release catch.

Slide cover cap (1) forwards with a suitable tool.

Fig 1: Identifying Cover Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

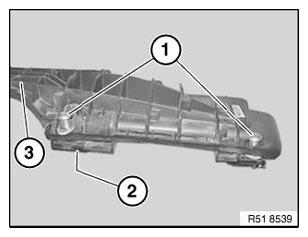

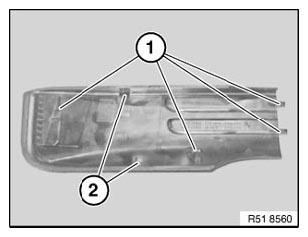

Guides (1) and catches (2) must not be damaged. If damaged, replace cover cap.

Fig 2: Identifying Guides And Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Rear cover cap:

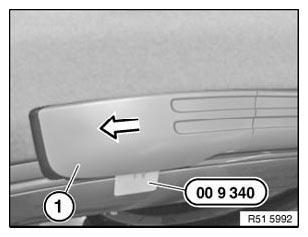

Slide special tool 00 9 340  under rear cover cap (1) (observe position as per picture) and release catch.

Slide cover cap (1) back with a suitable tool.

Fig 3: Identifying Cover Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) on rail (3).

Remove rail (3).

Standard Torx screw is only supplied if expressly ordered.

Installation:

Replace screws (2) after each removal.

Tighten down screws to tightening torque 51 13 3AZ  , see 51 13 TRIM PARTS, COVERS, HANDLE TRIM .

Fig 4: Identifying Screws And Rail

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean contact surfaces and seal (2) before installation, check for damage, replace if necessary.

Fig 5: Identifying Seal

Courtesy of BMW OF NORTH AMERICA, INC.
