51 49 017 Removing and installing/replacing trim panel for rear window frame on (inside) left or right

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trim panel at top, see 51 49 002 Removing and installing/replacing (upper) panel for rear window frame .

Detach trim panel (1) from retainers (2) towards inside.

Installation:

If necessary, replace faulty retainers (2).

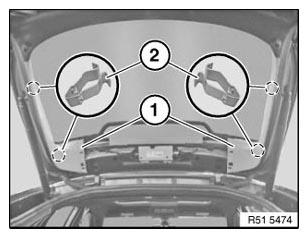

Fig 1: Identifying Trim Panel And Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Lugs (1) on panel (2) must not be damaged.

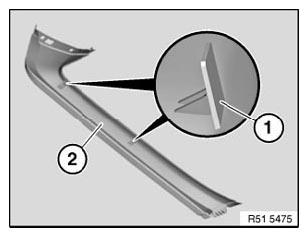

Fig 2: Identifying Lugs On Panel

Courtesy of BMW OF NORTH AMERICA, INC.
