51 49 000 Removing and installing/replacing panel for rear lid
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 9 317 , see 00 9 317 TRIM PANEL WEDGE .
Necessary preliminary tasks:
- Remove panel for rear window frame on left and right, see 51 49 002 Removing and installing/replacing (upper) panel for rear window frame .
- Remove luggage compartment lights on rear lid, see 63 31 080 REMOVING AND INSTALLING/REPLACING (LEFT OR RIGHT) LUGGAGE COMPARTMENT LIGHT (ON REAR LID) .
- Remove button for rear lid actuation on left and right, see 61 31 084 REMOVING AND INSTALLING/REPLACING SWITCH FOR AUTOMATIC REAR LID ACTUATION .

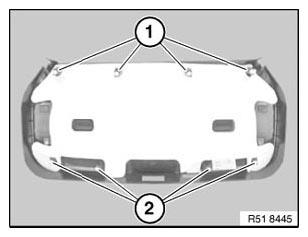

Fit special tool 00 9 317 on inside of cover (1) and lever out.
Release screws (2) and unclip panel.
Installation:

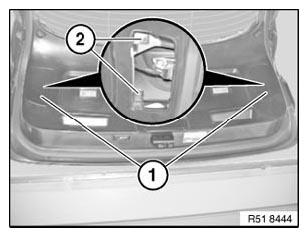

If necessary, replace faulty clips (1 and 2).
Make sure all clips are installed in correct position.
