51 47 105 Removing and installing/replacing trim on D-pillar at bottom left or right

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove flap in luggage compartment trim panel, see 51 47 172 Removing and installing/replacing flap in luggage compartment trim, left or right .

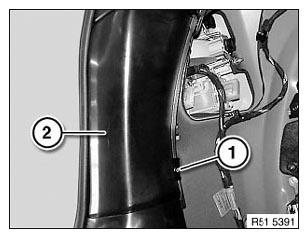

Release screw (1).

Detach trim panel (2).

Fig 1: Identifying Trim Panel Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

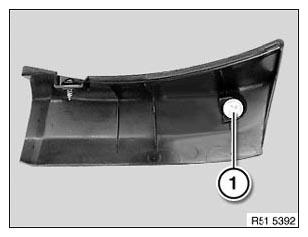

If necessary, replace faulty clip (1).

Fig 2: Identifying Faulty Clip

Courtesy of BMW OF NORTH AMERICA, INC.
