51 42... Replacing speaker cover on rear left or right door trim panel (mid-range speaker)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove door trim panel, see 51 42 000 Removing and installing (replacing) rear left or right door trim panel .
Remove mid-range speaker, see 65 13 090 REMOVING AND INSTALLING/REPLACING SPEAKER (MID-RANGE SPEAKER, DOOR AT REAR) .

Remove plastic welded joints (1) on speaker cover (2) completely.

Installation:

Speaker cover (2) can only be installed in one position.

Fig 1: Identifying Welded Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

Attach speaker cover (1) to door trim panel.

Secure retainers (3) to plastic guides (2) so that speaker cover (1) rests fully on door trim panel.

NOTE: Shorten protruding plastic guides (2) by measurement (A).

(A) = 2 mm

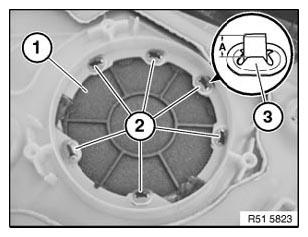

Fig 2: Identifying Speaker Cover Plastic Guides

Courtesy of BMW OF NORTH AMERICA, INC.
