51 12 828 Removing and installing/replacing guide for rear left or right bumper

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear bumper, see 51 12 156 Removing and installing rear bumper trim

NOTE: The operation is described on the left side; proceed in the same way for the right side.

Version with TV function:

Feed aerial/antenna (1) out of guides (3) and through opening (2).

Installation note:

Make sure aerial/antenna is laid correctly.

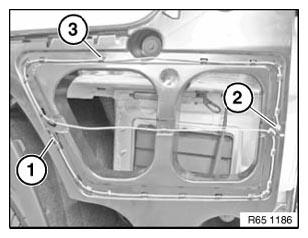

Fig 1: Identifying Antenna And Guides

G06213872

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1 and 2).

Unscrew nuts (3).

Take off holder (4).

Tightening torque 51 12 3AZ , see 51 12 REAR BUMPER ..

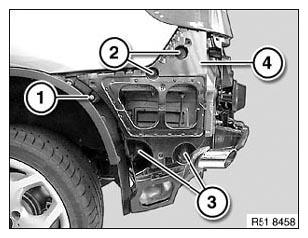

Fig 2: Identifying Holder, Nuts And Screws

G06212440

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Guides in area (A) of bracket (1) must not be damaged.

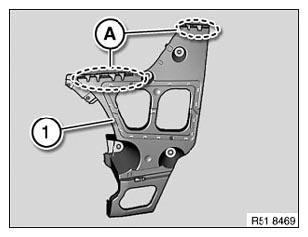

Fig 3: Identifying Area And Bracket

G06212441

Courtesy of BMW OF NORTH AMERICA, INC.
