51 12 050 Removing and installing/replacing support for rear bumper trim
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove rear bumper trim, see 51 12 156 Removing and installing rear bumper trim .

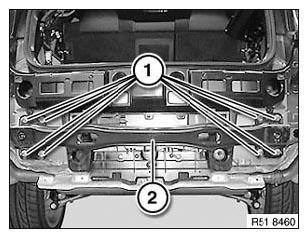

Release nuts (1) on left and right.
Remove support (2).
Installation:
Tightening torque 51 12 1AZ , see 51 12 REAR BUMPER .
