51 16 202 Removing and installing/replacing front cup holder

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove center console, see 51 16 165 Removing and installing/replacing complete center console .
Remove side trim from center console on left and right, see 51 16 227 Removing and installing/replacing trim on center console at side left or right .

Release screws (1).

Fig 1: Identifying Screws

G04791533

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Fig 2: Identifying Screws

G04791534

Courtesy of BMW OF NORTH AMERICA, INC.

E71 only:

Release left and right screws (1).

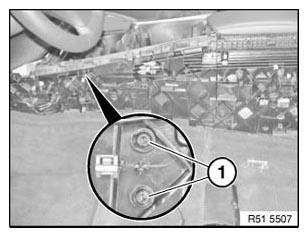

Fig 3: Identifying Left And Right Screws

G06212542

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and (2) and remove center console function support (3).

Remove front cup holder (4).

Fig 4: Identifying Screws, Centre Console Function Support And Front Cup Holder
