Overview for side window cementing (E71)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Moisten suction surface of special tool 51 3 220 and secure to door window glass. Set down door window glass on a suitable surface.
If reusing the previous side window, remove residual adhesive down to 0.5 mm.

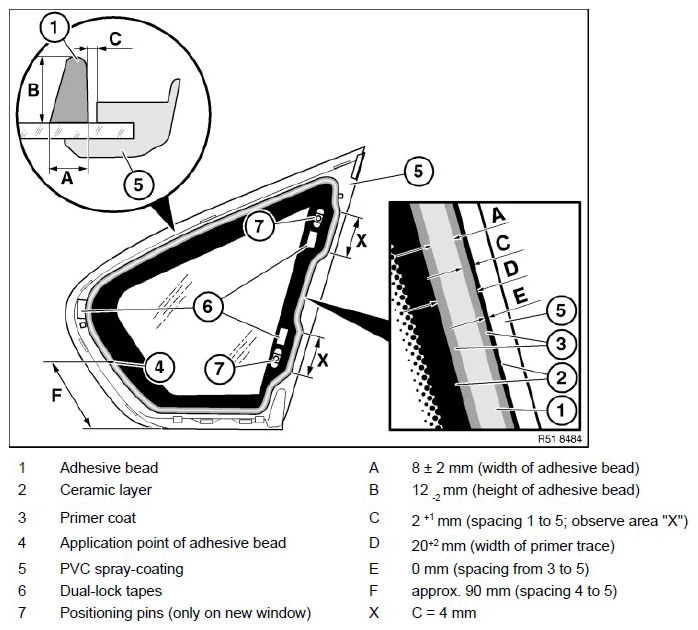

Almost vertical part (B) of adhesive bead (1) must face PVC spray-coating (5).
In area (X) of positioning pins (7) spacing (C) of adhesive bead (1) to PVC spray-coating (5) must be increased to 4 mm.
Spread adhesive bead (4) with special tool 00 9 322 .

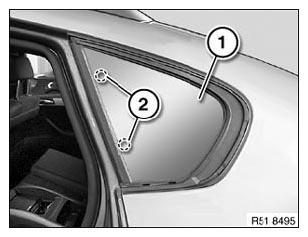

Fit side window (1) with positioning pins (2).
Insert side window (1) completely.
Close rear door.
Adapt side window (1) to rear door if necessary.
Snap side window into dual-lock tapes and secure with yellow plastic adhesive tape*.
* (Sourcing reference: BMW Parts Service)
