51 71 385 Removing and installing/replacing rear middle water gutter trim (rear lid)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Open rear lid.

Pull off mucket in upper area of rear lid.

Release expansion rivet (1).

Release clips (2).

Remove finisher strip (3).

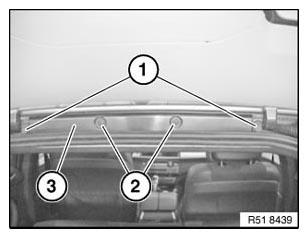

Fig 1: Identifying Expansion Rivet And Finisher Strip

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: If clip mountings are removed during further operations (e.g. painting), always replace these mounting to ensure watertightness.
