51 64 001 Removing and installing or replacing top air flap control
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove radiator air duct, see 51 71 099 Removing and installing/replacing radiator air guide .

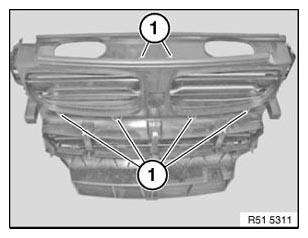

Release screws (1).
Remove air flap control.
