51 11 180 Removing and installing/replacing grille in bumper trim (bottom middle)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove front bumper trim, see Removing and installing front bumper trim .

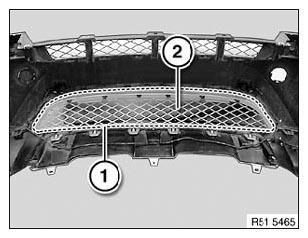

Release catches along line (1) and remove grille (2).
Installation:
Catches must not be damaged
