51 47 135 Removing and installing/replacing left or right lashing rail in luggage compartment floor
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove luggage compartment wheel arch trim, see left luggage compartment wheel arch trim and right luggage compartment wheel arch trim .
- Remove storage compartment in luggage compartment, see 51 47... Removing and installing/replacing storage compartment in luggage compartment on left or right .
IMPORTANT:
Risk of mixing up
Different screws fitted.
Different screws fitted.

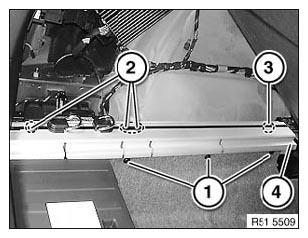

Release clips (1).
Unfasten screws (2 and 3).
Feed out lashing rail (4) towards rear.
Installation:
Tighten down screws (2) to tightening torque 51 71 5AZ , see 51 71 SEALS AND LOOSE BODY PARTS .
