41 12 651 Replacing Left Luggage Compartment Floor (Tail Panel Or Side Wall Removed): Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Read contents of BODY, GENERAL and observe relevant service information.
STRIP DOWN vehicle
Place vehicle on straightening bench.
Following new body parts are required (refer to BMW Electronic Parts Catalogue):

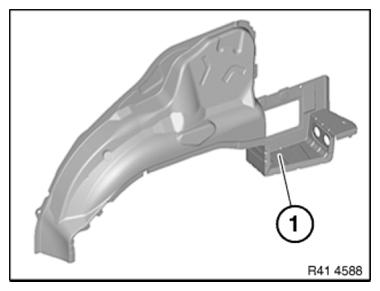

- (1) Rear wheel arch
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K5a | 1 |
| Blind rivets N3 | 19 |
| EMC screws | 4 |
| Cleaning agent R1 | 1 |
| Sealant D1 |
