41 33 040 Replacing Front Left Or Right Side Wall Holder

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Read contents of BODY, GENERAL  and observe relevant procedures.
Side wall removed.
Transfer the systematic diagram onto the respective holder version.

General information:

Following new body parts are required (refer to BMW Electronic Parts Catalogue):

Following CONSUMABLES  are required:

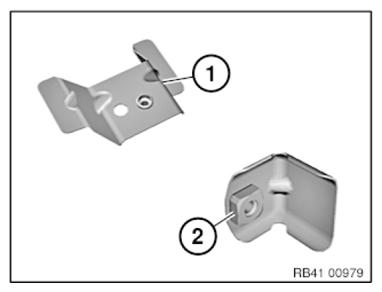

Fig 1: Identifying Front Side Wall Holder (Variant 1 And 2)
G08528660Courtesy of BMW OF NORTH AMERICA, INC.
Material Quantity
Adhesive K5a 1
Blind rivets N3 2
Cleaning agent R1 1

Removal of side wall holder (variant 1):

Release welded connections in areas (1) and remove holder (2).

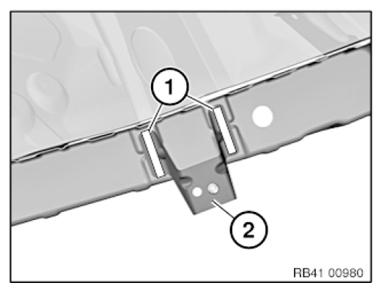

Fig 2: Identifying Welded Connections Areas And Holder
G08528661Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Adjust new part in conjunction with side panel in front to fit.

In area of bonding surfaces (1), set 2 4.2 mm dia. bore holes (2) for blind rivetsN3.

Remove new part and deburr holes.

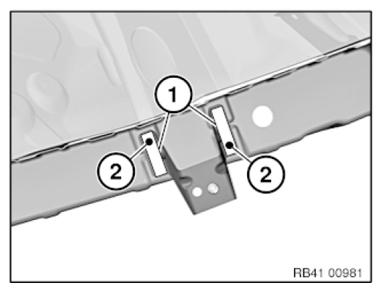

Fig 3: Identifying Bonding Surfaces And Blind Rivets Bore Diameter
G08528662Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Do not grind bonding surfaces down or off.

Installation of side wall holder:

Clean all bonding surfaces with cleaning agent R1.

Apply adhesive to bonding surfaces.

Install new part and rivet with blind rivets.

Removal of side wall holder (variant 2):

Release welded connection in area (1) and remove holder (2).

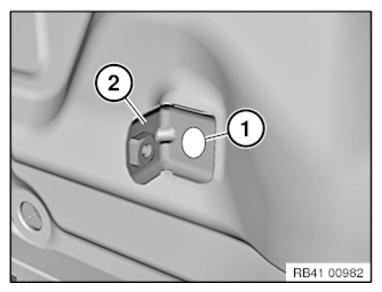

Fig 4: Identifying Welded Connection Area And Holder
G08528663Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Fit in new part.

In area of adhesive surface (1), drill a 4.2 mm dia. bore hole (2) for blind rivet N3.

Remove new part and deburr holes.

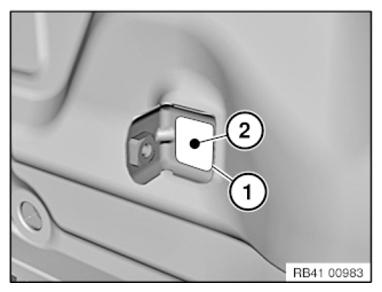

Fig 5: Identifying Adhesive Applying Area And Blind Rivet Bore Hole
G08528664Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Do not grind bonding surfaces down or off.

Installation of side wall holder:

Clean all bonding surfaces with cleaning agent R1.

Apply adhesive to bonding surface.

Install new part and rivet with blind rivet.
