36 11 533 Removing and installing/replacing RDC wheel electronics

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 2 190

IMPORTANT: If the wheel electronics have been removed, the complete valve must be replaced.

NOTE: If a tire sealant has been used, replace the wheel electronics.
When a tire has been removed, do not clean the rim with installed wheel electronics with high-pressure cleaning equipment.
Do not treat wheel electronics with solvents, cleaning agents etc. If dirty, wipe with a clean cloth only.
Do not clean wheel electronics with compressed air.

Necessary preliminary tasks:

REMOVE TIRE

Labelling of wheel electronics

Transmitting frequency of wheel electronics
Large Torx socket
BMW part number
Tightening torque of Torx screw and union nut
Width across flats of union nut
Serial number of wheel electronics
Date of manufacture of wheel electronics

Fig 1: Identifying Labelling Of Wheel Electronics

Courtesy of BMW OF NORTH AMERICA, INC.

Removing wheel electronics

Release Torx socket crew (1) and remove wheel electronics (2).

Fig 2: Identifying Torx Socket Crew And Wheel Electronics

Courtesy of BMW OF NORTH AMERICA, INC.

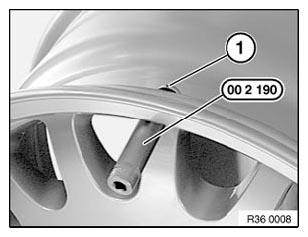

Release union nut with special tool 00 2 190; if necessary, grip valve insert (1) at cylindrical section of ball head.

Remove valve insert from rim.

Fig 3: Identifying Valve Insert And Special Tool 00 2 190

Courtesy of BMW OF NORTH AMERICA, INC.

Remove washer (1).

Fig 4: Identifying Washer

Courtesy of BMW OF NORTH AMERICA, INC.

Installing wheel electronics

Insert new Torx socket screw (1) in wheel electronics (2) and secure firmly.

Twist new valve insert (3) by hand approx. 3 turns onto screw (1).

NOTE: Do not tighten screw; wheel electronics and valve insert must be loosely joined together.

Fig 5: Identifying Torx Socket Screw In Wheel Electronics

Courtesy of BMW OF NORTH AMERICA, INC.

Insert valve insert with wheel electronics into cleaned valve bore.

Here the radial bore (1) for gripping on the circumference of the valve insert ball head must point outwards.

Fig 6: Identifying Radial Bore

Courtesy of BMW OF NORTH AMERICA, INC.

Insert the brace (1) supplied with the valve into the valve insert bore.

Fit new washer and screw on new union nut (2) by hand as far as it will go.

IMPORTANT: The screw connection must be tightened to the specified torque in one go!
Do not under any circumstances retighten the screw connection!
Remove brace, otherwise it may damage the tire.

Fig 7: Identifying Brace And Union Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down union nut (2) while using brace (1) to prevent valve insert from turning.

Installation:

Tightening torque 36 11 1AZ .

IMPORTANT: The screw connection must be tightened to the specified torque in one go!
Do not under any circumstances retighten the screw connection!

Press wheel electronics gently into well base and tighten Torx socket screw (1).

Installation:

Tightening torque 36 11 2AZ .

Fig 8: Pressing Wheel Electronics Into Well Base

Courtesy of BMW OF NORTH AMERICA, INC.
