36 11 105 Removing and installing RDC (Tyre Pressure Control) control unit (LOW COST)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION)
.

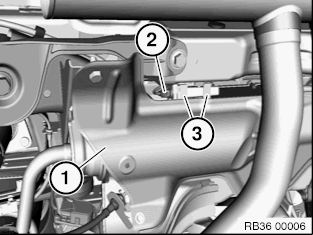

If necessary, loosen the heat shield (1). Disconnect plug connection (2). Push the retaining tabs (3) apart. Pull the RDC control unit out.
