36 11 105 Removing and installing RDC (Tire Pressure Control) control unit

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove TRIM PANEL FOR PEDAL ASSEMBLY .
Disconnect negative battery cable

Release screws (1).

Remove air duct (2).

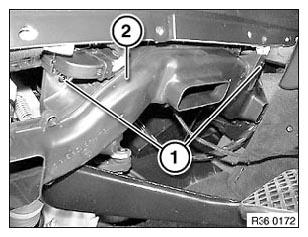

Fig 1: Identifying Screws And Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Press lug (3) in direction of arrow and pull out control unit (2) towards bottom.

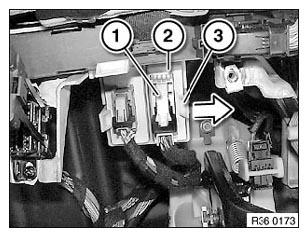

Fig 2: Pressing Lug

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/CODING
