34 35 513 Replacing a brake pad sensor (rear)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
The brake pad wear sensor must be replaced once it has been removed (brake pad wear sensor loses its retention capability in the brake pad).
If a brake pad sensor that has already been ground has to be replaced even though the minimum brake pad thickness has not yet been reached, you must observe the following: The new sliding contact must be filed down with a file to the same length as the ground sliding contact.
If a brake pad sensor that has already been ground has to be replaced even though the minimum brake pad thickness has not yet been reached, you must observe the following: The new sliding contact must be filed down with a file to the same length as the ground sliding contact.
Necessary preliminary tasks:
- Partially detach rear wheel arch trim . See 51 71 041 REMOVING AND INSTALLING/REPLACING REAR LEFT OR RIGHT WHEEL ARCH COVER .

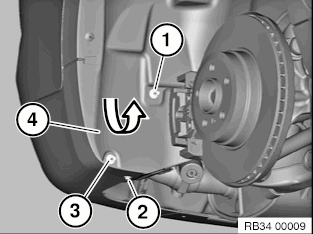

Release fastening elements (1 to 3). Swing wheel arch panel (4) upwards.
Installation note: If necessary, replace defective retaining elements.
Open housing cover (1).
Disconnect plug connection (2).
Installation:
Ensure proper locking of the plug connector and proper seating of the cable in the brackets.
Disengage cable (1) along marked lines from holders.
Installation:
Ensure proper locking of the holders and proper seating of the cable in the holders.
Pull brake pad sensor (1) in direction of arrow out of brake pad.
Installation:
Make sure brake pad sensor (1) is correctly seated in brake pad.
Disengage cable of brake pad sensor from holders (2).
