33 31 503 Lowering/raising rear axle carrier (universal lifter): Notes
Special tools required:
- 00 2 030
- 31 5 250
- 31 5 253
- 31 5 256
Failure to comply with the following instructions may result in the vehicle slipping off the lifting platform and critically injuring other persons.
Read and observe the information on load distribution in the lifting platform operating instructions.
Load the luggage compartment with a minimum of 100 kg before lowering/removing the rear axle carrier.
When supporting components, make sure that
- the vehicle can no longer be raised or lowered
- the vehicle does not lift off the locating plates on the lifting platform
Necessary preliminary tasks:
- Remove REAR WHEELS
- Tension BOTH COIL SPRINGS (and leave on vehicle)
- Remove complete EXHAUST SYSTEM - REPAIR (N54) or EXHAUST SYSTEM - REPAIR (N63)
- Disconnect PLUG CONNECTION ON ACTUATING UNIT (EMF)
- Unclip lines for pulse generator, brake pad wear sensor or shock absorber from holders above rear axle carrier
- Disconnect plug connection at both ride-height sensors
Version with ride-height control:
Deactivate and drain AIR SPRING/SUSPENSION SYSTEM
Tilt lower section of air spring (1) by hand towards front/side.
Installation:
Press lower section of air spring (1) by hand into wheel carrier until it can be seen and heard to snap into place.
Press clutch pedal down to floor and secure with pedal support.
This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.
Position an oil sump underneath to catch brake fluid.
Release banjo bolts (1), gripping brake hoses (2) at square head in the process.
Disconnect brake hoses (2) and seal off with plugs.
Installation:
Make sure brake hose is laid without tension and with sufficient spacing to adjoining components.
Tightening torque 34 32 1AZ .
Engage special tool 31 5 250 with a 2nd person helping completely on workshop jack 00 2 030.
Insert special tools 31 5 253 in telescopic supports of a profile rail pair.
Insert special tools 31 5 256 in telescopic supports of other profile rail pair.
Align special tool 31 5 256 to opening in rear axle carrier.
Align special tools 31 5 253 to cross-member arms on rear axle carrier.
Version with Dynamic Drive:
Remove RIGHT UNDERBODY PANELLING (REAR SECTION) .
1 = Banjo bolts
Remove front and rear compression struts and carefully lower rear axle carrier approx. 50 mm. See 33 32 153 REMOVING AND INSTALLING/REPLACING FRONT COMPRESSION STRUT and 33 32 155 REMOVING AND INSTALLING/REPLACING REAR COMPRESSION STRUT .

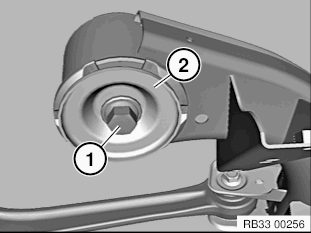

Vehicles without the rear compression strut: Release screw (1).
Tightening torque 33 33 1AZ . Remove screw (1) and stop plate (2).
