33 10 021 Replacing output shaft seal in rear differential: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

13 5 251
13 5 253
33 0 130

IMPORTANT: The shaft seal is replaced only in conjunction with the DRIVE FLANGE and circlip!

Necessary preliminary tasks:

Remove REAR DIFFERENTIAL

Drive out drive flange (1) with special tools 13 5 251 and 13 5 253.

Fig 1: Removing Drive Flange With Special Tools (13 5 251 And 13 5 253)

Courtesy of BMW OF NORTH AMERICA, INC.

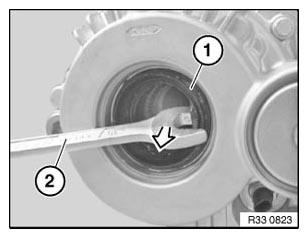

Lever shaft seal (1) with a suitable fork wrench (2) in direction of arrow out of rear differential.

Fig 2: Levering Shaft Seal With Suitable Fork Wrench

Courtesy of BMW OF NORTH AMERICA, INC.
