33 11 091 Replacing drive flange on left or right of rear differential: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

13 5 251
13 5 253

NOTE: If a flange has drifted and is loose, it is necessary always to replace both flanges (left as well as right).

IMPORTANT: The drive flange is replaced only in conjunction with the circlip and shaft seal! See 00 11... CHECKING/TOPPING UP OIL LEVEL IN REAR DIFFERENTIAL (DYNAMIC PERFORMANCE CONTROL) and 00 11 259 CHANGING OIL IN REAR DIFFERENTIAL (DYNAMIC PERFORMANCE CONTROL) AND DISPOSING OF USED OIL .

Necessary preliminary tasks:

Remove REAR DIFFERENTIAL

Drive out drive flange (1) with special tools 13 5 251 and 13 5 253.

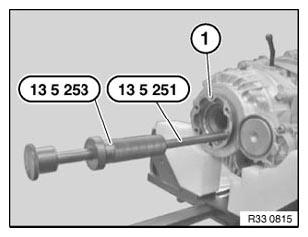

Fig 1: Removing Drive Flange With Special Tools (13 5 251 And 13 5 253)

Courtesy of BMW OF NORTH AMERICA, INC.
