33 11 021 Replacing shaft seal for drive flange on rear differential (inserted propeller shaft): Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 5 010
33 0 120
33 5 050
33 5 060
33 5 070

IMPORTANT: Use only approved gear oils.

Failure to comply with this instruction will result in serious damage to the rear differential!

Necessary preliminary tasks:

Remove propeller shaft

Remove retaining clip (1) and insert nut (2) with diaphragm seal.

Fig 1: Identifying Retaining Clip With Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Mark position of flange nut (1) to bevel pinion (2).

Fig 2: Identifying Flange Nut With Bevel Pinion

Courtesy of BMW OF NORTH AMERICA, INC.

Release flange nut with special tools 33 5 050 and 33 5 070 ; to do so, grip bevel pinion with special tools 33 5 060 and 33 5 070.

Fig 3: Removing Flange Nut With Special Tools (33 5 050 And 33 5 070)

Courtesy of BMW OF NORTH AMERICA, INC.

Withdraw shaft seal with special tool 00 5 010.

Fig 4: Removing Shaft Seal With Special Tool (00 5 010)

Courtesy of BMW OF NORTH AMERICA, INC.

Coat sealing lips of new shaft seal and sealing face of bevel pinion with differential oil.

Drive in shaft seal with special tool 33 0 120 .

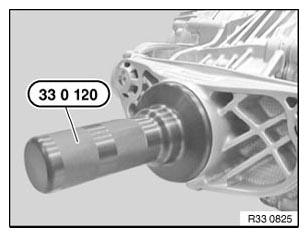

Fig 5: Identifying Special Tool (33 0 120)

Courtesy of BMW OF NORTH AMERICA, INC.

Clean bevel pinion thoroughly to remove remnants of screw-locking agent.

Fig 6: Identifying Bevel Pinion

Courtesy of BMW OF NORTH AMERICA, INC.

Check dust cover for damage, replace if necessary.

IMPORTANT: Clean flange nut thoroughly to remove remnants of grease and screw-locking agent.

Pack collar insert (1) of flange nut with grease.

Apply a thin coating of grease to shaded area (2) of flange nut.

Coat at least four thread turns of flange nut with "DREI BOND adhesive type 1385".

Fig 7: Applying Thin Coating Of Grease To Shaded Area Of Flange Nut

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: In order to avoid damaging the rear differential, do not under any circumstances tighten down the flange nut (1) beyond the marker point of the bevel pinion (2).

Fig 8: Identifying Flange Nut With Bevel Pinion

Courtesy of BMW OF NORTH AMERICA, INC.

Place insert nut (2) with diaphragm seal in flange nut.

Install retaining clip (1).

Fig 9: Identifying Retaining Clip With Nut

Courtesy of BMW OF NORTH AMERICA, INC.
