32 33 000 Removing and installing/replacing sport steering wheel: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

Move wheels to straight-ahead position and do not alter this position during repair work.

Do not under any circumstances turn the steering column switch cluster when the steering wheel is removed.

NOTE: Wheel/chassis alignment is not necessary after the steering wheel has been removed and installed or replaced.

Necessary preliminary tasks:

Remove AIRBAG UNIT

Move wheels/steering wheel into straight-ahead position.

Disconnect plug connection (1).

If necessary, disconnect plug connection (2) for steering wheel heating.

Release screw (3) and remove steering wheel (4).

Installation:

Make sure connecting lead(s) is/are correctly laid.

Tightening torque 32 33 1AZ .

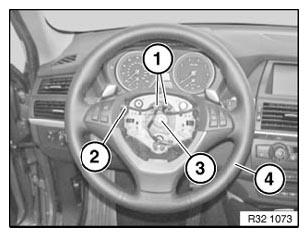

Fig 1: Identifying Steering Wheel And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Version with steering wheel heating: Before fitting steering wheel on steering column, ensure correct cable routing.

Align steering wheel by way of marking (1) to steering column marking (2) and attach.

Fig 2: Aligning Steering Wheel Of Marking To Steering Column Marking And Attach

Courtesy of BMW OF NORTH AMERICA, INC.
