31 60... Pressing output shaft out of drive flange (wheel hub) and drawing in
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- Hydraulic unit - 81 64 2 155 744
- Adapter kit 1 - 81 64 2 155 745
- Adapter kit 2 - 81 64 2 155 746
The following tools are required to press out the output shaft from the drive flange, see graphic for arrangement:
Vehicle Components
| I | Drive flange hub |
| II | Wheel bearing / swivel bearing |
Necessary Components
| 1 | Hydraulic unit |
| E3 | Washer M24 |
| F3 | Spindle M24 (length 270 mm) |
| C1 | Holding sleeve |
| K2 | Screws M14 x 1.5 |
| B1 | Adapter |
Secure output shaft against falling out
Press out output shaft with hydraulic unit
The following work steps describe drawing in the output shaft:
Vehicle Components
| I | Drive flange hub |
| II | Wheel carrier/swivel bearing |
| III | Output shaft |
Required Components For All Models And Types
| 1 | Hydraulic unit |
| E1 | Holding sleeveM24 |
| D1 | Washer |
| F2 | Spindle M24 / M20 (length 335 mm) |
Components Specific To Model And Type (Thread Diameter, Output Shaft)
| G1 | Adapter M22 x 1.5 to M20 |
| G2 | Adapter M24 x 1.5 to M20 |
| G3 | Adapter M27 x 1.5 to M20 |
IMPORTANT:
Risk of damage!

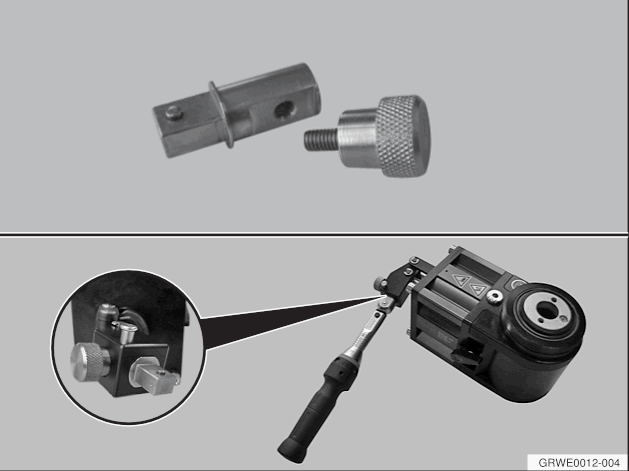

Due to the technical requirements, the special tool used, sleeve G,* is relatively thin-walled. To ensure that the load limit of the tensioning sleeve is not exceeded when drawing in the output shaft, it is essential to use adapter 81 64 2 318 661 in combination with a torque wrench.
Fit adapter with torque wrench to hydraulic unit
Set torque wrench to 20 Nm.
Draw in output shaft with hydraulic tool until the torque wrench is activated.
