24 34 565 Replacing mechatronics (GA8HP70Z) (X6 50i 2011-13)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

Do not let skin come in contact with transmission oil and do not inhale transmission oil vapors.
Wear protective gloves.
Ensure adequate ventilation

NOTE: After completing work:

Load specific data status with the BMW diagnosis system

IMPORTANT:

In vehicles with Automatic Start/Stop , an oil reservoir is installed in the mechatronics.

After completion of the repair work, TRANSMISSION OIL LEVEL

Use only the approved transmission oil:

ATF oil Shell L12108* .............. BMW part number 83 22 2 152 426

* Can be substituted by the lifetime oil "ATF -3".............. BMW part number 83 22 2 305 397

Failure to comply with this requirement will result in serious damage to the automatic transmission!

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary work:

Remove rear UNDERBODY PROTECTION .
Remove exhaust bracket.

Remove panels (2).

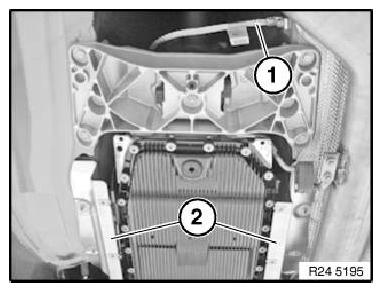

Fig 1: Identifying Earth Strap And Panels

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Mechatronics can be destroyed by static discharges. Therefore the contacts inside the connector must not be touched. Insert special tool immediately after operation.

Unscrew connector (1) and disconnect.

Fig 2: Disconnecting Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 24 2 390 (cap) in sealing cup (1).

Fig 3: Inserting Special Tool (24 2 390) In Sealing Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Remove TRANSMISSION OIL SUMP .

Remove oil reservoir.

Release screw (1) and unlock sealing cup with slide (2).

Tightening torque: 8 Nm

Fig 4: Removing Sealing Cup

Courtesy of BMW OF NORTH AMERICA, INC.

Note position of sealing cup.

Pull out sealing cup (1).

Installation note:

Fit sealing cup in position (lug on inside). Turn until lug engages in groove of transmission. Slide in sealing cup.

Lug on sealing cup must not be damaged!

Fig 5: Pulling Out Sealing Cup

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Only for vehicles without oil reservoir.

Release all screws (1 and 2).

1 = M6 x 59 mm
2 = M6 x 20 mm

Carefully remove mechatronics.

Installation note:

Replace all screws (1 and 2).

Replace O-rings for oil ducts on the mechatronics unit and wet with automatic transmission fluid.

Fig 6: Identifying Mechatronics Unit Mounting Screws (For Vehicles Without Oil Reservoir)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Only for vehicles with oil reservoir.

Release all screws (1 and 2).

1 = M6 x 59 mm
2 = M6 x 20 mm

Carefully remove mechatronics.

Installation note:

Replace all screws (1 and 2).

Replace O-rings for oil ducts on the mechatronics unit and wet with automatic transmission fluid.

Fig 7: Identifying Sealing Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace gasket (1).

Coat new seal with automatic transmission fluid and install.

Fig 8: Identifying Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Screw in retaining pins 24 1 430 at screw position 4 and 9.

Fig 9: Installing Retaining Pins (24 1 430) At Screw Position

Courtesy of BMW OF NORTH AMERICA, INC.

Fit mechatronics unit.

Fit shift claw (2) in gearshift shaft (3) by pressing release lever (1).

Fig 10: Pressing Release Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Screw down wing nuts as far as they will go on to the mechatronics unit.

Fig 11: Installing Mechatronics Unit Wing Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Observe different screw lengths.

Failure to comply with this requirement will result in serious damage to the automatic transmission!

Installation note:

Insert screws 8 and 14 until screw heads make contact.

Remove guide pins and fit remaining screws.

Tighten screws in sequence 1....18.

Tightening torque: 8 Nm

IMPORTANT:

In vehicles with an oil reservoir, the screw 17 (M6 x 59 mm) must be secured with the oil reservoir.

Tighten in the order of 1...16 and 18.

Tightening torque: 8 Nm

Fig 12: Automatic Transmission Valve Body (Mechatronics) Screws Tightening/Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.
