11 65 Connection diagram, vacuum activation (N54)

WARNING: This page is about a different car, the 2010 BMW X6, 2009 BMW X6, and 2008 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

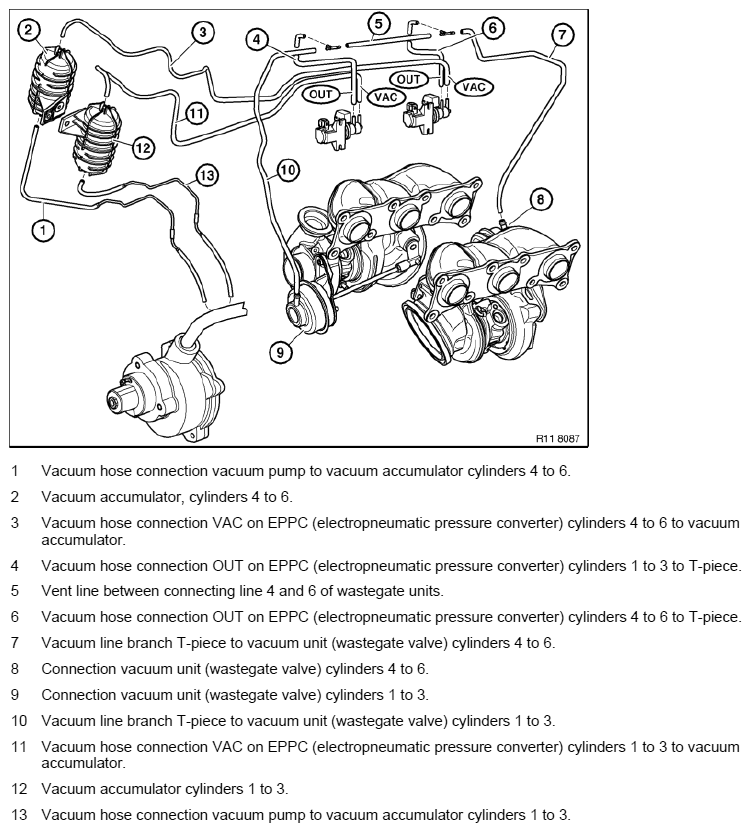

Fig 1: Vacuum Diagram (N54)

Courtesy of BMW OF NORTH AMERICA, INC.
