Pressure measurement

WARNING: This page is about a different car, the 2010 BMW X6, 2009 BMW X6, and 2008 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Prepare BMW diagnosis system on BMW auxiliary diagnosis unit - pressure.

Screw in pressure sensor (1).
Insert blue pressure line (2) as far as it will go into pneumatic coupling.
Connect stimulus leads (3) to positive and negative terminals.
Connect 12V battery cables (4) to vehicle battery positive and negative.

Fig 1: Identifying Pressure Sensor, Blue Pressure Line And Stimulus Leads

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Pneumatic coupling locks automatically.

NOTE: For an exact leak test, seal clean-air pipe (1) with special tool (3) bearing number 82 29 2 146 625.

Secure clamp (2) to 4 Nm.

Secure union nut (4) to 10 Nm.

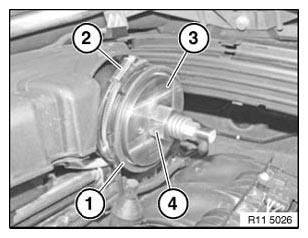

Fig 2: Identifying Seal Clean-Air Pipe And Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Insert blue pressure line (3) as far as it will go into pneumatic coupling (2).

Note on removal:

Slide lock (1) of pneumatic coupling (2) in direction of arrow.

Release blue pressure line (3).

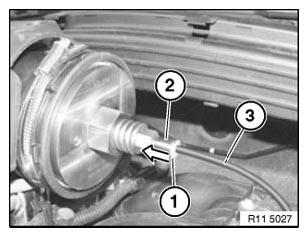

Fig 3: Identifying Lock, Pneumatic Coupling And Blue Pressure Line

Courtesy of BMW OF NORTH AMERICA, INC.
