61 31 492 Replacing level switch for windscreen washer system

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Release wheel arch cover (FRONT and REAR section) in working area and pull forwards

Disconnect plug connection (1).

Turn level switch for windscreen washer system (2) in direction of arrow and remove towards bottom from fluid reservoir for windscreen washer system (3).

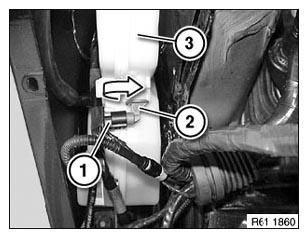

Fig 1: Identifying Windscreen Washer System And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
