61 31 192 Replacing knob for controller (without M-models, until 10/2009)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317
00 9 323

NOTE:

See MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

NOTE: The number of buttons and shape of controller can vary depending on vehicle type.

Before 10/2009: Controller (1) has buttons on bottom only.

After 10/2009 : Controller (2) has buttons top and bottom.

Button may be removed from controller (1) only!

NOTE: These repair instructions describe the removal of the button from controller (1)!

Fig 1: Identifying Number Of Buttons And Shape Of Controller

Courtesy of BMW OF NORTH AMERICA, INC.

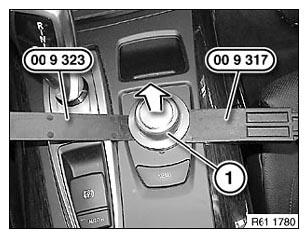

Lever knob for controller (1) with special tools 00 9 323 and 00 9 317 in direction of arrow off controller and remove.

Fig 2: Removing Controller

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!
Fit knob for controller only when controller is installed.

Installation:

Fit knob for controller (1) so that guides (2) are seated in recesses (3).

Fig 3: Identifying Controller And Guides

Courtesy of BMW OF NORTH AMERICA, INC.
