61 31 133 Removing and installing/replacing AV connection socket

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 323

NOTE:

See MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Necessary preliminary tasks:

Open storage compartment

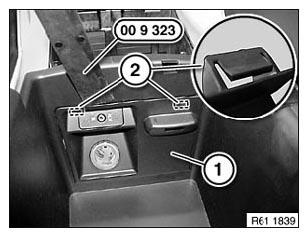

Unlock retaining lugs (2) with special tool 00 9 323 and feed trim (1) out of storage compartment.

Disconnect associated plug connections and remove trim (1).

Fig 1: Identifying Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

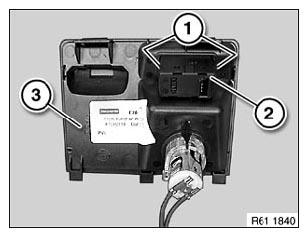

Unlock retaining lugs (1) and feed out AV connection socket (2) to front side of trim (3).

Fig 2: Identifying Retaining Lugs And AV Connection Socket

Courtesy of BMW OF NORTH AMERICA, INC.
