61 71 100 Removing and installing/replacing windscreen washer pump

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trim panel for cover on frame side member on right
Remove wheel arch cover at front (rear section) right

NOTE: Work is shown on the E70 by way of example. There may be differences in detail in the case of other vehicle models.

IMPORTANT: Risk of damage!
Carry out this operation carefully so as to avoid damaging the side panel.

Release screws.

Pull side panel forwards slightly.

Installation:

Tightening torque, see 41 35 7AZ (A-pillar area) in 41 35 SIDE PANELS .

Tightening torque, see 41 35 8AZ (sill area) in 41 35 SIDE PANELS .

Fig 1: Removing Side Panel

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Side panel shown removed for purposes of clarity.
Catch any escaping washer fluid if necessary.

Disconnect plug connection (1).

Pull windscreen washer pump (2) in direction of arrow out of fluid reservoir for windscreen washer system.

Disconnect hose plug connection (3) from windscreen washer pump (2).

Installation:

Replace strainer in windscreen washer pump.

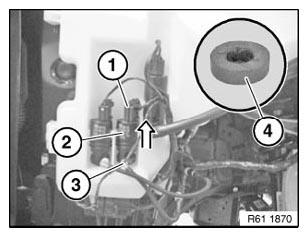

Fig 2: Removing Windscreen Washer Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Coat sealing ring (4) of windscreen washer pump (2) with antiseize agent.

Make sure hose is correctly routed.

Fill fluid reservoir.
