61 71 004 Adjusting windscreen washer spray nozzles

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

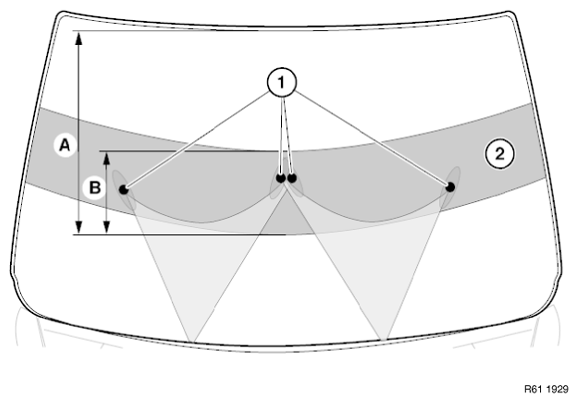

Fig 1: Identifying Windscreen Washer Spray Nozzles Tolerance Range

Courtesy of BMW OF NORTH AMERICA, INC.

Mark tolerance range (2) with adhesive tape (A=500 mm/B=200 mm).

Actuate windscreen washer system.

Contact points (1) must be in tolerance range (2).

If necessary, adjust left or right spray nozzle (1) by way of screw (2).

NOTE: If necessary, remove adhesive residue from windscreen.
Fill up with washer fluid.

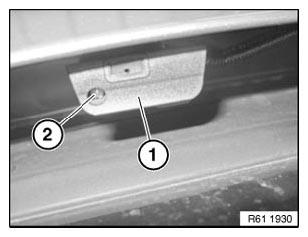

Fig 2: Identifying Left/Right Spray Nozzle And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
