61 13 042 Replacing distribution box (luggage compartment)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on handling wiring harnesses and cables.

Necessary preliminary tasks:

Disconnect battery negative lead
Remove flap in right luggage compartment wheel arch trim . See 51 47 172 REMOVING AND INSTALLING/REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .

E70:

Release expansion rivets (1).

Remove insulating mat (2).

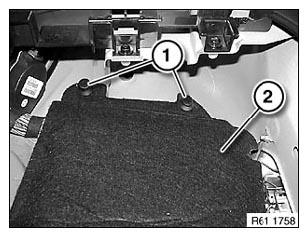

Fig 1: Identifying Expansion Rivets And Insulating Mat

G06213430

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Release wiring harness fastener (2) on distribution box.

Release screws (3).

Pull distribution box forwards slightly in direction of arrow.

Feed emergency actuator (4) out of distribution box.

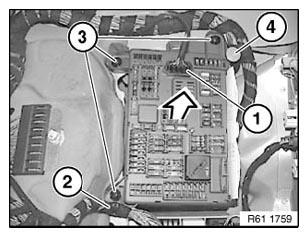

Fig 2: Identifying Plug Connection And Wiring Harness Fastener

G06213431

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

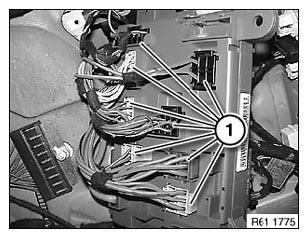

Fig 3: Disconnecting Plug Connection

G06213432

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Remove distribution box.

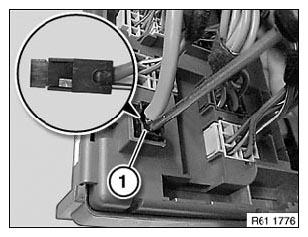

Fig 4: Identifying Plug Connection And Distribution Box

G06213433

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove fuses and relays.
