61 33 050 Removing and installing/replacing left fanfare horn

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front bumper trim . See 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM .

NOTE: Work is shown on the E70 (without engine oil cooler) by way of example. There may be differences in detail in the case of other vehicle models.

WARNING: Risk of injury!

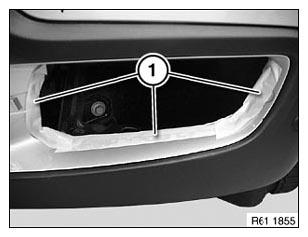

Tape off edges (1) of bumper trim.

Fig 1: Identifying Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.

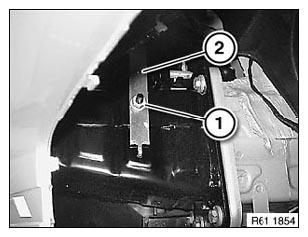

Release nut (1) and pull holder with fanfare horn (2) forwards slightly. Tightening torque, see 61 33 4AZ in 61 33 HORN .

Disconnect associated plug connection and remove holder with fanfare horn (2).

Fig 2: Identifying Fanfare Horn And Nut

Courtesy of BMW OF NORTH AMERICA, INC.
