61 14 010 Removing and installing/replacing distribution box (on battery)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Observe safety instructions
for handling vehicle battery.
Follow instructions on intelligent battery sensor (IBS) .
Follow instructions on intelligent battery sensor (IBS) .
Necessary preliminary tasks:
- Disconnect battery negative lead
Additionally E70 Security (optional extra SA 106):
- Disconnect Security battery positive lead

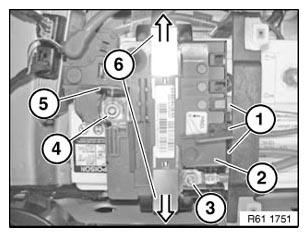

Disconnect plug connection (1).
Open cover, release nut (3) underneath and disconnect battery positive lead. Tightening torque, see 61 21 4AZ in 61 21 BATTERY WITH TERMINAL .
Open cover (5) and release nut (4). Tightening torque, see 61 21 2AZ in 61 21 BATTERY WITH TERMINAL .
Using a suitable tool, expand locking bracket (6) at lower end and clip out.
Lift distribution box (2) out of battery.
