61 35 958 Removing and installing/replacing interior aerial/antenna for comfort access system on left or right (luggage compartment, side)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove panel for luggage compartment floor or fold upwards

Release expansion rivets (1).

Move panel (2) downwards.

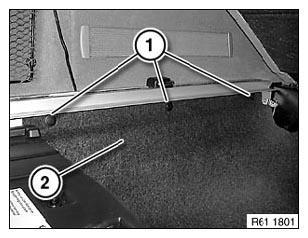

Fig 1: Releasing Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Release screws (2) and remove interior aerial/antenna for comfort access system (3).

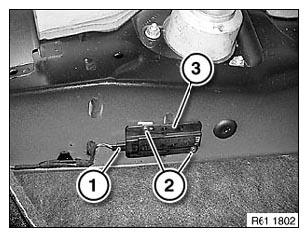

Fig 2: Identifying Aerial, Antenna And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
