61 35 080 Removing and installing/replacing control unit/module for left or right seat adjustment

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection) .

Necessary preliminary tasks:

Disconnect battery negative lead

NOTE: To facilitate installation/removal of control unit, move seat upwards fully.

Disconnect all plug connections on control unit for seat adjustment (1).

Fig 1: Identifying Plug Connections On Control Unit For Seat Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock retaining tabs (1) towards front and remove control unit for seat adjustment (2) in direction of arrow.

Installation:

Make sure control unit for seat adjustment (2) is correctly seated in mounting.

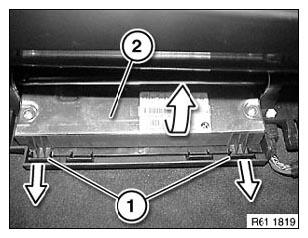

Fig 2: Identifying Control Unit And Retaining Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/coding .
