61 35 015 Removing and installing (replacing) control unit for Car Access System

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection) .

NOTE: The comfort access system is a radio-based system and can be interfered with by radio waves from other systems (e.g. mobile phone).

Necessary preliminary tasks:

Disconnect battery negative lead
Remove trim for pedal assembly . See 51 45 185 REMOVING AND INSTALLING/REPLACING PANEL FOR PEDALS .

Disconnect plug connection (1).

Unlock catches (2) and pull out control unit for Car Access System (3) in downward direction.

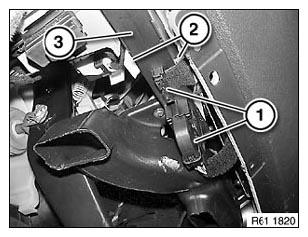

Fig 1: Identifying Plug Connection And Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/CODING
If necessary, initialize Telestart hand transmitter (independent heating)
